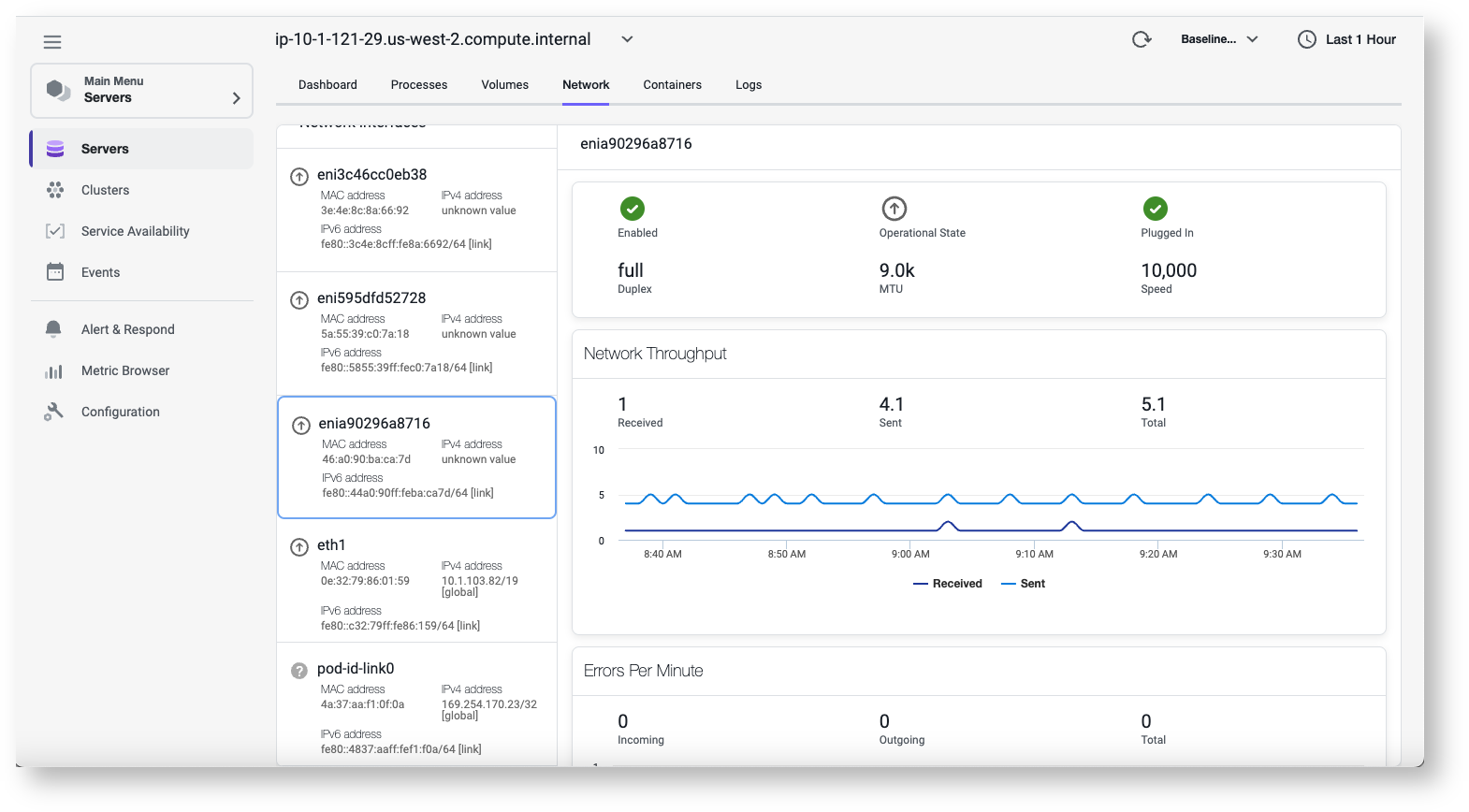

To access Server Network Metrics by using Controller, select Home > Servers > double-click server > Network.
From the Server Network tab, you can:
- View the MAC, IPv4, and IPv6 IP address for each network interface.
- View the state of the network interface:
- Enabled
- Functional (its operational state)
- Equipped with an Ethernet cable that is plugged in
- Operating in full or half-full duplex mode
- View the maximum transmission unit (MTU) or size (in bytes) of the largest protocol data unit that the network interface can pass
- View the speed of the Ethernet connection in Mbit/sec
- View network throughput in kilobytes/sec and packet traffic
- Change the time period of the metrics displayed
- Hover over any point on a chart to review the metric value for that time
If no metrics display, the network device speed cannot be found for some devices and some Linux versions. |
Server Network Metrics
These columns are available for the Server Network panel.
For the selected network interface:
- Network Throughput received: The volume of data received per second
- Network Throughput sent: The volume of data sent per second
- Packets per sec incoming: The number of data packets received per second
- Packets per sec outgoing: The number of data packets sent per second
