Key Browser RUM metrics display on the GeoPages & AJAX Requests, and Usage Stats dashboards. They are also visible on the All Pages and Top Pages lists and in the Metric Browser.

In addition, the Metric Browser enables you to view these metrics in the context of Ajax requests, Iframes, applications, base pages, browsers, devices, and geographic locations.

Metric Browser

You can build custom health rules based on Browser RUM Page, Ajax, and Iframe metrics in the health rule builder. Use these rules to automatically monitor key metrics in your installation. See Health Rules.

Browser RUM Timing Metrics Overview

The following provides an overview of the first Browser RUM page and Iframe timing metrics. For key Ajax metrics, see Ajax Metrics Availability. Metrics in blue are available only from NavTime browsers. You may see a value of unknown for some metrics taken using older browsers.

When users begin to load the first instrumented page, the JavaScript Agent starts a timer. The timer or the NavTime responseStart starts the first-page timing.

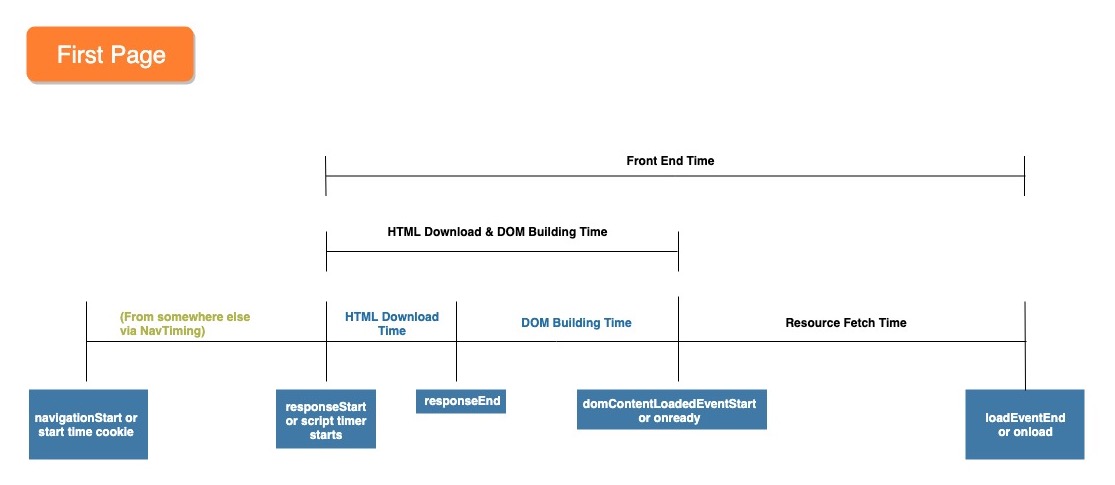

First Page Diagram

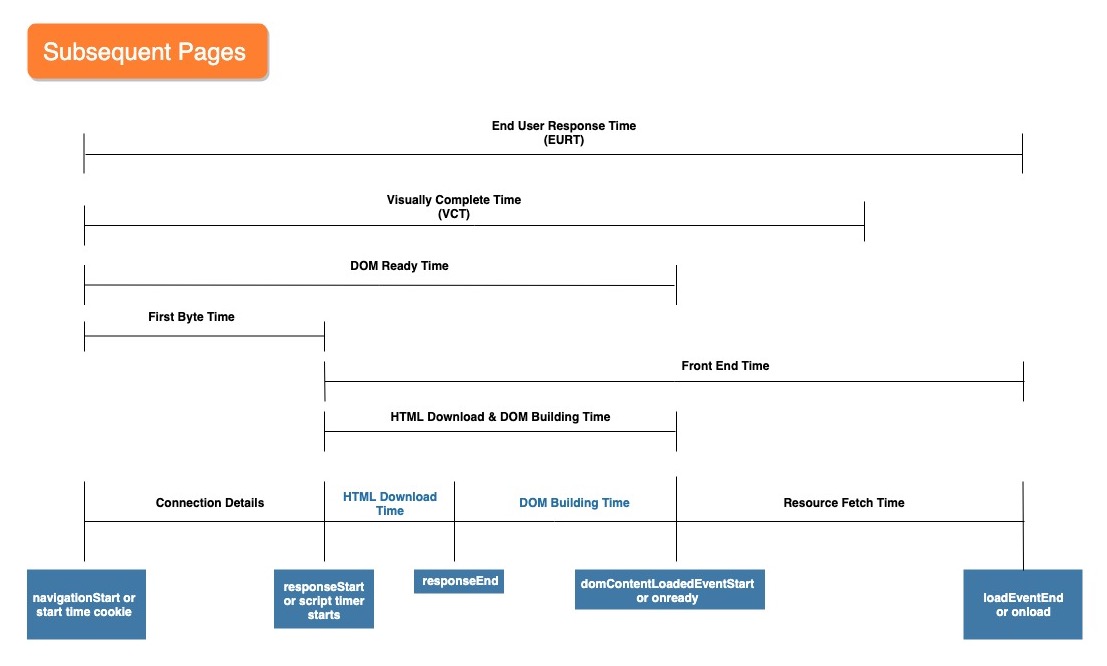

Subsequent Pages Diagram
Connection Details Diagram

Because a NavTime browser always sets navigationStart, you can retrieve this information even on the first page a user loads from your site.

NavTiming-capable browsers also provide highly granular information on connection details.

Timing Metric Definitions

Timing metrics are the average times, in milliseconds, over the time range selected in the Controller UI or REST API call. The three-letter abbreviation is the short name as it is recorded in the web beacon.

Name (Short Name)NavTiming Capable
Browsers
1
Browsers without NavTiming SupportAvailable
For . . .
Definition
Ajax Callback Execution Time (DPT)

responseEnd to
domContentLoadedEventStart
(context of the Ajax object)

responseEnd to
domContentLoadedEventStart
(context of the Ajax object)
Ajax Requests (XHR, Fetch API)

Time for the browser to process the Ajax response.
This typically includes the time to apply the response data to the DOM.

Ajax Response Download Time (DDT)responseStartf to
responseEnd
(context of the Ajax object)

responseStart to
responseEnd
(context of the Ajax object)

Ajax Requests (XHR, Fetch API)Time for the browser to download the complete Ajax response.

Ajax Request Errors per Minute

(Short name based on
ARE entries)



  • Ajax Requests (XHR, Fetch API)
  • App
  • Browser
  • Device
  • Geo
Total number of Ajax requests that generate an error per minute.

Ajax Requests per Minute

(Short name based on
PLC entries)



  • App
  • Browser
  • Device
  • Geo

Total number of Ajax requests per minute.

Application Server Calls per Minute

  • Ajax Requests (XHR, Fetch API)
  • App
  • Base Pages
  • Browser
  • Device
  • Geo
  • Iframes
Number of requests that actually hit the application server, rather than a cache.
Application Server Time
(also called Server Time in the UI)


  • Ajax Requests (XHR, Fetch API)
  • App
  • Base Pages
  • Browser
  • Device
  • Geo
  • Iframe
Processing time for requests on the application server.
Browser Queue Time

  • Ajax (XHR, Fetch API)
  • App
  • Base Pages
  • Browser
  • Device
  • Geo
  • Iframes

DOM Building Time (DPT)responseEnd to
domContentLoadedEventStart
N/A
  • App
  • Base Pages
  • Browser
  • Device
  • Geo
  • Iframes

Time for the browser to build the Document Object Model (DOM) and make it available for JavaScript to apply rendering logic.

DOM Ready Time (DOM)2navigationStart to
domContentLoadedEventStart

Time between the writing of the
starttime cookie on the previous
page and an internal handler's
onready event, similar to
jquery.onready().



  • App
  • Base Pages
  • Geo
Interval between the time that a user initiates a request and the time that the DOMContentLoaded event (or the internal handler's onready event) occurs.
Domain Lookup Time (DNS)domainLookupStart
to domainLookupEnd
N/A
  • App
  • Base Pages
  • Browser
  • Device
  • Geo
  • Iframes
Time to complete the domain lookup portion of the server connection time.
End User Response Time (PLT)2
navigationStart
to loadEventEnd

Time between the writing of the starttime cookie
on the previous page and the onload event.


  • Ajax Requests (XHR, Fetch API)
  • App
  • Base Pages
  • Browser
  • Device
  • Geo
  • Iframes

Average interval between the time that a user initiates a request and the completion of the page load of the response in the user's browser.

In the context of an Ajax request, it ends when the response has been completely processed.

For information about End User Response Time for SPA2 pages, see SPA2 Metrics.

First Byte Time (FBT)2
navigationStart
to responseStart

Time between the writing of the
starttime cookie on the previous
page and when the page's JavaScript
Agent begins executing.


  • Ajax Requests (XHR, Fetch API)
  • App
  • Base Pages
  • Browser
  • Device
  • Geo
  • Iframes

Interval between the time that a user initiates a request and the time that the browser receives the first response byte.

In the context of an Ajax request, First Byte Time is the interval between the Ajax request dispatch and the time that the browser receives the first response byte.

Front End Time (FET)responseStart to
loadEventEnd
Time between when the page's
JavaScript Agent begins executing
and the onload event.
  • App
  • Base Pages
  • Browser
  • Device
  • Geo
  • Iframes

Interval between the arrival of the first byte of text response and the completion of the response page rendering by the browser.

Includes HTML Download, DOM Building Time, and Resource Fetch Time.

HTML Download and DOM Building Time (DRT)responseStart to
domContentLoadedEventStart

Time between when the page's
JavaScript Agent begins executing
and an internal handler's onready
event, similar to jquery.onready().

  • App
  • Base Pages
  • Browser
  • Device
  • Geo
  • Iframes

Time to make the complete HTML document (DOM) available for JavaScript to apply rendering logic.

Includes the HTML Download and the DOM Building Time.

HTML Download Time (DDT)responseStart
to responseEnd
N/A
  • App
  • Base Pages
  • Browser
  • Device
  • Geo
  • Iframe
Time for the browser to download the complete HTML document content.

Iframe Requests per Minute

(Short name based on
PLC entries)



  • App
  • Browser
  • Device
  • Geo
Total number of Iframe requests per minute.
Images Loaded per Pageview

  • Ajax (XHR, Fetch API)
  • App
  • Base Pages
  • Browser
  • Device
  • Geo
  • Iframes

Total number of images in a pageview.

Calculated after page has completely loaded.

Page Complete Time (PCT)


N/A



N/A


  • App
  • Base Pages
  • Browser
  • Device
  • Geo

Total time for the browser to render all visual page elements (both in and out of the viewport). Available for SPA base pages only.

For information about Page Complete Time for SPA2 pages, see SPA2 Metrics.

Page Requests per Minute

(Short name based on
PLC entries)



  • App
  • Browser
  • Device
  • Geo

Total number of Page requests per minute.

This is the metric displayed across most of the UI.

Page views with JavaScript Errors per minute

(Short name based on
EPM entries)



  • App
  • Base Pages
  • Browser
  • Device
  • Geo
  • Iframes
Total number of page views that contain JavaScript errors per minute.
Resource Fetch TimedomContentLoadedEventStart
to loadEventEnd
Time between an internal handler's
onready event, similar to
jquery.onready(), and onload.
  • App
  • Base Pages
  • Browser
  • Device
  • Geo
  • Iframes
Time for the browser to complete the download of remaining resources, including images, and finish rendering the page.
Resources Loaded per Pageview

  • Ajax (XHR, Fetch API)
  • App
  • Base Pages
  • Browser
  • Device
  • Geo
  • Iframes

Total number of resources in a pageview.

Calculated after the page has completely loaded.

Requests per Minute

(Short name based on
PLC entries)



  • Ajax Requests (XHR, Fetch API)
  • App
  • Base Pages
  • Browser
  • Device
  • Geo
  • Iframes
Total number of requests (Page + Ajax + Iframe) per minute.
Scripts Loaded per Pageview

  • Ajax (XHR, Fetch API)
  • App
  • Base Pages
  • Browser
  • Device
  • Geo
  • Iframes

Total number of scripts in a pageview.

Calculated after the page has completely loaded.

Server Connection Time (SCT)navigationStart
to requestStart
N/A
  • App
  • Base Pages
  • Browser
  • Device
  • Geo
  • Iframes
Interval between the time that a user initiates a request and the start of fetching the response document from the server or application task. Includes the time spent on redirects, domain lookups, TCP connects and SSL handshakes.
SSL Handshake Time (SSL)3secureConnectionStart
to connectEnd
N/A
  • App
  • Base Pages
  • Browser
  • Device
  • Geo
  • Iframes

Time taken to complete the SSL handshake.


TCP Connect Time (TCP)connectStart
to connectEnd
N/A
  • App
  • Base Pages
  • Browser
  • Device
  • Geo
  • Iframes
Time to complete the TCP connect portion of the server connection time, the equivalent of one network roundtrip of latency.
Total Resource Redirect Time

  • Ajax (XHR, Fetch API)
  • App
  • Base Pages
  • Browser
  • Device
  • Geo
  • Iframes

Time for all redirects associated with fetching resources.

Calculated after the page has completely loaded.

Visually Complete Time (VCT)


N/AN/A
  • App
  • Base Pages
  • Browser
  • Device
  • Geo
  • Iframes

Total time for all visual elements within the first screen (above-the-fold content) to load in an end user’s browser.
Calculated using the last visual change to the page in a browser window.

For information about Visually Complete Time for SPA2 pages, see SPA2 Metrics.

Ajax Metrics Availability

Because Ajax requests occur in the context of the larger page, these four core metrics are always available, regardless of the browser type.

Ajax Core Metrics Diagram

For more information on which browsers support the Navigation Timing API, see the Can I Use website.

Resource Timing Metrics

Resource timing metrics are the median times in milliseconds. The resource timing metrics shown in the Resource Performance Dashboard are raw data. For a visual representation of the resource timing, see the Resource Timing Overview diagram.

Metric NameHow It's CalculatedDescription
Browser WaitstartTime or redirectEnd to fetchStartTime from the redirection or request start until the browser begins to fetch the resource.
Redirect TimeredirectStart to redirectEnd

Time for all redirects associated with fetching resources.

DNS Wait TimefetchStart to domainLookupStartTime from when the browser starts to fetch the resource until the browser starts the domain name lookup for the resource.
DNS Time

domainLookupStart to domainLookupEnd

Time to complete the domain lookup portion of the server connection time.
TCP Wait TimedomainLookupEnd to connectStart

Time for the browser to find the domain name for the resource before a connection is made.

Connection TimeconnectStart to connectEndTime to complete the establish the TCP connection for a resource: the equivalent of one network roundtrip of latency.
SSL Time

secureConnectionStart to connectEnd

(if secureConnectionStart exists)

Time to establish a secure connection to the server.

Request Wait Time

connectEnd to requestStart

Time for the request is made for a resource from the server, cache, or local resource before the connection is closed.

Request TimerequestStart to responseStart

Time for the browser to complete the request for a resource from the server, cache, or local resource.

Response TimeresponseStart to responseEndTime for the browser to download the complete HTML document content. In the context of an Ajax request, the time for the browser to download the complete Ajax response.
First Byte TimestartTime to responseStartTime from when the request is made until the first byte of the resource is received by the browser.
Resource Load TimestartTime to responseEndTime for the browser to start a request and receive a response for a resource.
Browser Queue TimeBrowser Wait + DNS Wait Time + Request Wait TimeTotal wait time of the resource.
TCP TimesecureConnectionStart to connectStart Time spent to establish a secure connection to the server (same as SSL Time).

Configure Timing Metrics

If your application continuously sends Ajax requests or resources, you may want to configure the default JavaScript timing metrics below.

For example, if in your SPA2 app the Ajax requests are sent at a faster rate (i.e 2 seconds) than the default maxInactive time (3 seconds), the Page Load Time metric could be incorrectly inflated. To fix this, you could configure maxInactiveTime to 2 seconds so Page Load Time matches the rate of the Ajax requests.

maxResourceQuietTime

If all registered resources are loaded and the time elapsed between currentTime and last resource load time is >= maxQuietTime, the resource observer stops.

(function(config){
   config.navComplete = {
                maxResourceQuietTime: 5000 // For SPA2 applications, the default value is 5000 (5 seconds). For non-SPA applications, the default value is 1000 (1 		    second).
            };
})(window['adrum-config'] || (window['adrum-config'] = {}));
JS

maxXhrQuietTime

If all XHRs are successful and the time elapsed between currentTime and last XHR load time is >= maxQuietTime, the XHR observer stops.

(function(config){
   config.navComplete = {
                maxXhrQuietTime: 3000 // For SPA2 applications, the default value is 3000 (3 seconds). For non-SPA applications, the default value is 1000 (1 second).
            };
})(window['adrum-config'] || (window['adrum-config'] = {}));
JS

About timing metrics and NavComplete

 maxResourceQuietTime and maxXhrQuietTime contribute toward the page observation period to be marked complete (navComplete). There are two ways for navComplete to occur:

  1. Both the XHR observer (maxXhrQuietTime) and the resource observer (maxResourceQuietTime) have stopped running.
  2. The time elapsed since the last download activity has exceeded the maxQuietTime. This means enough time has passed since the latest resource or XHR load.

Once either of these scenarios is reached, the JavaScript Agent will consider the page to be complete, mark the timing as Visually Complete Time, and report the page to AppDynamics.

maxInactiveTime

maxInactiveTime is the current time minus when the last resource (i.e. Ajax call) happened. If this value is greater than maxInactiveTime, the navigation observer is assumed complete and the Visually Complete Time value is sent.

(function(config){
   config.navComplete = {
                maxInactiveTime: 3000 // For SPA2 applications, the default value is 3000 (3 seconds). For non-SPA applications, the default value is 1000 (1 second).
            };
})(window['adrum-config'] || (window['adrum-config'] = {}));
JS
